🙆‍♂️ 병렬 통신

---

NetCon으로 병렬 통신을 합니다. NetCon 소스들은 임계값 감지기 입니다. 막 전위 등 변수들을 모니터링하고 임계값에 도달하면 이벤트가 발동됩니다. like 시냅스?

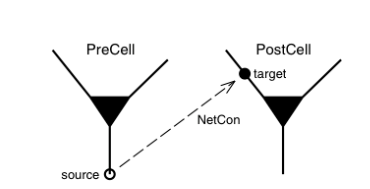

시냅스전 뉴런 "PreCell"에 부착된 "NetCon"은 소스라고 표시된 위치에서 스파이크를 감지하고 시냅스 후 뉴런 "PostCell"에 부착된 시냅스 "타겟"에 이벤트를 전달합니다.



gid=7인 시냅스 전 스파이크 소스 "PreCell"은 "호스트 2"에 있지만 대상은 "호스트 4"의 "PostCell"에 연결된 시냅스입니다. "PreCell"이 급증하면 소스가 "gid 7"인 "NetCons"가 이벤트를 대상에 전달할 수 있도록 메시지가 모든 호스트에 전달됩니다.





🙋‍♂️ 실습 시작

---

MPI라는 도구를 사용할 것인데 Jupyter Notebook으로는 안됩니다.

https://neuron.yale.edu/ftp/neuron/2019umn/neuron-quickstart.pdf

위 문서 3슬라이드를 통해 MPI를 설치할 수 있습니다.



from neuron import h
h.nrnmpi_init()       # initialize MPI
pc = h.ParallelContext()
print('I am {} of {}'.format(pc.id(), pc.nhost()))
h.quit()              # necessary to avoid a warning message on parallel exit on some systems

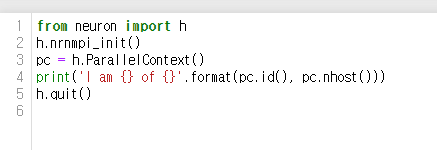

설치가 완료되었다면 위의 코드를 짜서 실험 코드를 실행해 볼 수 있습니다.



testmpi.py 파일을 만들어주고



터미널을 열고 해당 파일이 있는 경로로 이동하여





mpiexec -n 4 python testmpi.py

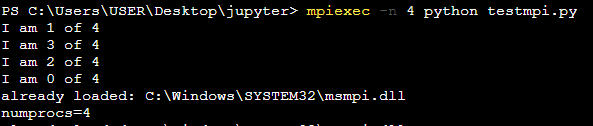

명령어를 쳐주면 4번 실행되는데 병렬 실행이라 순서대로 실행되는 것이 아닌 동시에 실행되는 모습입니다.



이제 실습을 위해 여러 파일을 만들 것입니다. 먼저 cell.py입니다.

from neuron import h
class Cell:
    def __init__(self, gid, x, y, z, theta):
        self._gid = gid
        self._setup_morphology()
        self.all = self.soma.wholetree()
        self._setup_biophysics()
        self.x = self.y = self.z = 0
        h.define_shape()
        self._rotate_z(theta)
        self._set_position(x, y, z)

        # everything below here in this method is NEW
        self._spike_detector = h.NetCon(self.soma(0.5)._ref_v, None, sec=self.soma)
        self.spike_times = h.Vector()
        self._spike_detector.record(self.spike_times)

        self._ncs = []

        self.soma_v = h.Vector().record(self.soma(0.5)._ref_v)


    def __repr__(self):
        return '{}[{}]'.format(self.name, self._gid)

    def _set_position(self, x, y, z):
        for sec in self.all:
            for i in range(sec.n3d()):
                sec.pt3dchange(i,
                               x - self.x + sec.x3d(i),
                               y - self.y + sec.y3d(i),
                               z - self.z + sec.z3d(i),
                              sec.diam3d(i))
        self.x, self.y, self.z = x, y, z

    def _rotate_z(self, theta):
        """Rotate the cell about the Z axis."""
        for sec in self.all:
            for i in range(sec.n3d()):
                x = sec.x3d(i)
                y = sec.y3d(i)
                c = h.cos(theta)
                s = h.sin(theta)
                xprime = x * c - y * s
                yprime = x * s + y * c
                sec.pt3dchange(i, xprime, yprime, sec.z3d(i), sec.diam3d(i))



다음은 ballandstick.py 입니다.

from neuron import h, gui
from neuron.units import ms, mV
from cell import Cell
class BallAndStick(Cell):
    name = 'BallAndStick'

    def _setup_morphology(self):
        self.soma = h.Section(name='soma', cell=self)
        self.dend = h.Section(name='dend', cell=self)
        self.dend.connect(self.soma)
        self.soma.L = self.soma.diam = 12.6157
        self.dend.L = 200
        self.dend.diam = 1

    def _setup_biophysics(self):
        for sec in self.all:
            sec.Ra = 100    # Axial resistance in Ohm * cm
            sec.cm = 1      # Membrane capacitance in micro Farads / cm^2
        self.soma.insert('hh')
        for seg in self.soma:
            seg.hh.gnabar = 0.12  # Sodium conductance in S/cm2
            seg.hh.gkbar = 0.036  # Potassium conductance in S/cm2
            seg.hh.gl = 0.0003    # Leak conductance in S/cm2
            seg.hh.el = -54.3     # Reversal potential in mV
        # Insert passive current in the dendrite
        self.dend.insert('pas')
        for seg in self.dend:
            seg.pas.g = 0.001  # Passive conductance in S/cm2
            seg.pas.e = -65    # Leak reversal potential mV

        # NEW: the synapse
        self.syn = h.ExpSyn(self.dend(0.5))
        self.syn.tau = 2 * ms



마지막으로 ring.py입니다.

from neuron import h
from ballandstick import BallAndStick

### MPI must be initialized before we create a ParallelContext object
h.nrnmpi_init()
pc = h.ParallelContext()

class Ring:
    """A network of *N* ball-and-stick cells where cell n makes an
    excitatory synapse onto cell n + 1 and the last, Nth cell in the
    network projects to the first cell.
    """
    def __init__(self, N=5, stim_w=0.04, stim_t=9, stim_delay=1, syn_w=0.01, syn_delay=5, r=50):
        """
        :param N: Number of cells.
        :param stim_w: Weight of the stimulus
        :param stim_t: time of the stimulus (in ms)
        :param stim_delay: delay of the stimulus (in ms)
        :param syn_w: Synaptic weight
        :param syn_delay: Delay of the synapse
        :param r: radius of the network
        """
        self._N = N
        self.set_gids()                   ### assign gids to processors
        self._syn_w = syn_w
        self._syn_delay = syn_delay
        self._create_cells(r)             ### changed to use self._N instead of passing in N
        self._connect_cells()
        ### the 0th cell only exists on one process... that's the only one that gets a netstim
        if pc.gid_exists(0):
            self._netstim = h.NetStim()
            self._netstim.number = 1
            self._netstim.start = stim_t
            self._nc = h.NetCon(self._netstim, pc.gid2cell(0).syn)   ### grab cell with gid==0 wherever it exists
            self._nc.delay = stim_delay
            self._nc.weight[0] = stim_w

    def set_gids(self):
        """Set the gidlist on this host."""
        #### Round-robin counting.
        #### Each host has an id from 0 to pc.nhost() - 1.
        self.gidlist = list(range(pc.id(), self._N, pc.nhost()))
        for gid in self.gidlist:
            pc.set_gid2node(gid, pc.id())

    def _create_cells(self, r):
        self.cells = []
        for i in self.gidlist:    ### only create the cells that exist on this host
            theta = i * 2 * h.PI / self._N
            self.cells.append(BallAndStick(i, h.cos(theta) * r, h.sin(theta) * r, 0, theta))
        ### associate the cell with this host and gid
        for cell in self.cells:
            pc.cell(cell._gid, cell._spike_detector)

    def _connect_cells(self):
        ### this method is different because we now must use ids instead of objects
        for target in self.cells:
            source_gid = (target._gid - 1 + self._N) % self._N
            nc = pc.gid_connect(source_gid, target.syn)
            nc.weight[0] = self._syn_w
            nc.delay = self._syn_delay
            target._ncs.append(nc)

cell.py와 ballandsitck.py의 코드 내용은 전과 비슷합니다.

ring.py도 전에와 비슷하지만 ParalleCntext()를 사용하는 차이점이 있습니다.



첫 번째 테스트를 할 수 있습니다.

from neuron import h
from neuron.units import ms, mV
import matplotlib.pyplot as plt
from ring import Ring

cell_to_plot = 0

ring = Ring()

pc = h.ParallelContext()
pc.set_maxstep(10 * ms)

t = h.Vector().record(h._ref_t)
h.finitialize(-65 * mV)
pc.psolve(100 * ms)

if pc.gid_exists(cell_to_plot):
    plt.figure()
    plt.plot(t, pc.gid2cell(cell_to_plot).soma_v)
    plt.show()

pc.barrier()
pc.done()
h.quit()

test_ring1.py로 저장하고

python test_ring1.py

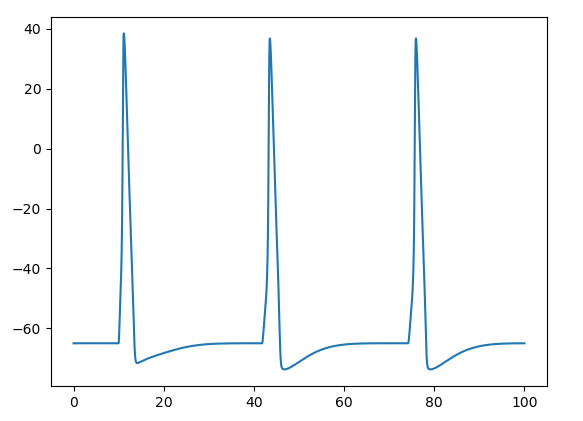

실행할 수 있습니다.
